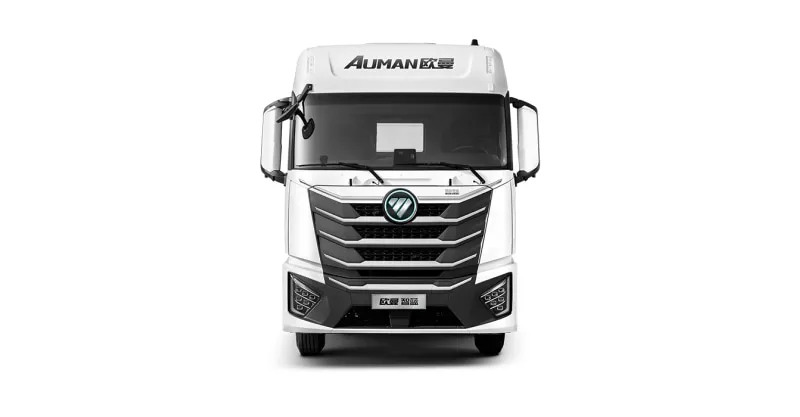

Auman Zhilan pure electric tractor (BJ4259EVDHF-16) chassis
Usage Scenarios:Transportation of heavy industrial goods
Maximum horsepower:843
Drive type:6X4
Wheelbase:3825+1400
Motor:AUMM0240A2
Gearbox:TS-0406DF
Usage Scenarios:Transportation of heavy industrial goods
Maximum horsepower:843
Drive type:6X4
Wheelbase:3825+1400
Motor:AUMM0240A2
Gearbox:TS-0406DF
Specification
| Vehicle type information | Auman Zhilan pure electric tractor (BJ4259EVDHF-16) chassis | Manufacturer's guide price (yuan) | 698800.00 yuan |
| Body (cab table) | Star Wings | Drive type | 6×4 |
| Wheelbase (mm) | 3825+1400 | Overall vehicle length | 7640 |
| Vehicle width | 2550 | Vehicle height | 3600 |
| version | Starwing Edition | GCW (Mass Loaded) | 49T |
| Department (tonnage series) | 49 | Applications (Segments) | Transportation of heavy industrial goods |
| Emission standards | / | Motor/engine model | AUMM0240A2 |
| Motor/engine brand | Auman | Motor type | Dual motors |
| Number of cylinders | / | Cylinder arrangement | / |
| Maximum output power | / | Maximum torque | / |
| Maximum torque speed | / | Rated speed | / |
| Fuel Type (Fuel Type) | / | Engine displacement (ml) / speed | / |
| Engine Emissions (Emission Standards) | / | Peak power | 620 |
| Rated power | 360 | Maximum horsepower (Ps) / horsepower range of single engine / engine | 843 |
| Battery brand | Ningde | Battery type | Lithium iron phosphate |
| Battery capacity | 423kWh | Charging method | Twin guns DC |
| Transmission model | TS-0406DF | Transmission brand | Topbest |
| Gear shifting method | AMT | Number of gears | 4 |
| Housing Material | Iron shell | Tire Specifications (Type) | 12.00R20 16PR |
| Number of tires | 11 | Fuel tank capacity | / |
| Fuel tank/gas tank material | / | Gas tank capacity | / |
| Fuel tank heating | / | Rear axle description (rear axle form) Single and double stages | Single-stage reduction axle |
| Rear axle model F | Benz | The permissible load on the rear axle | 16T |
| Rear axle ratio | 6.73 | Steering machine | AM90H-VS |
| Frame size | 225/286×80×（8+7） | Front axle description | Ordinary front axle |
| The permissible load on the front axle | 9T | Ratio | / |
| Suspension form | Leaf springs | Number of springs | 9/12 |
| saddle | 50 | Vehicle braking type | Front and rear drum type |
| handbrake | electron | Front wheel brakes | Drum pose |
| Rear wheel brakes | Drum pose | Hydraulic retarder | / |
| Vehicle announcement | / | Vehicle type | / |
| Vehicle origin | / | Tops branding | / |
| Tank / box dimensions | / | Tank/box volume | / |
| brand | / | Power(kW) | / |
| brand | / | Volume of single cylinder (L) | / |
| Number of cylinders | / | Remarks - Other optional devices | / |
