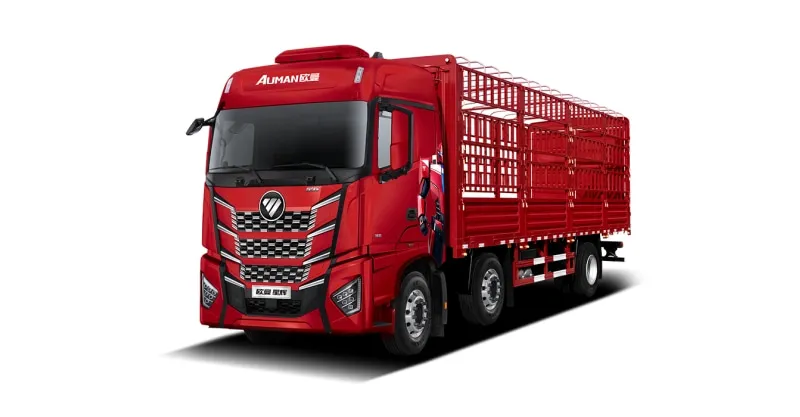

Auman Xinghui 8.5L 360 horsepower 6×2 diesel truck (BJ1269Y6HPL-03) chassis
Usage Scenarios:Green Pass/Cold Chain/Express
Maximum horsepower:360
Drive type:6X2
Wheelbase:2100+5400
Motor:A8.5-360
Gearbox:9AS1517TO Aluminum
Usage Scenarios:Green Pass/Cold Chain/Express
Maximum horsepower:360
Drive type:6X2
Wheelbase:2100+5400
Motor:A8.5-360
Gearbox:9AS1517TO Aluminum
Specification
| Vehicle type information | Auman Xinghui 8.5L 360 horsepower 6×2 diesel truck (BJ1269Y6HPL-03) chassis | Manufacturer's guide price (yuan) | 339850.00 yuan |
| Body (cab table) | Long body, high roof, high floor | Drive type | 6×2 |
| Wheelbase (mm) | 2100+5400 | Body length | 2300 |
| Body width | 2490 | Vehicle height | 3735/3925 (with AC) |
| version | / | GCW (Mass Loaded) | 25S |
| Department (tonnage series) | Standard load | Applications (Segments) | Green Pass/Cold Chain/Express |
| Engine model | A8.5-360 | Engine brand | Fortcan |
| Number of cylinders | 6 | Cylinder arrangement | In-line |
| Maximum output power | 264KW | Maximum torque | 1500N·m |
| Maximum torque speed | 900-1600r/min | Rated speed | 1900r/min |
| Fuel Type (Fuel Type) | diesel fuel | Engine displacement (ml) / speed | 8.5L |
| Engine Emissions (Emission Standards) | National VI | Maximum horsepower (Ps)/horsepower range | 360 |
| Transmission model | 9AS1517TO Aluminum | Transmission brand | ZF |
| Gear shifting method | AMT is self-contained | Number of gears | 9 |
| Housing Material | aluminium | Tire Specifications (Type) | 12R22.5-18PR、295/80R 22.5-18PR |
| Number of tires | 9 (including spare tire) | Fuel tank capacity | 600L optional 600L integrated double-label fuel tank |
| Fuel tank/gas tank material | Alcoa alloy plate | Gas tank capacity | / |
| Fuel tank heating | / | Rear axle description (rear axle type) | Unipolar reduction bridge, automatic adjusting arm, with inter-wheel differential lock. |
| Rear axle model F | New 440 Bridge | nonsupport | 11000kg |
| Rear axle ratio | 2.533; 2.643; 2.389 | Steering machine | AM90H-VSE is optional for AM80H-S |
| Frame size | 286×80×7 | Front axle description | AM5, auto-adjuster, 2080mm track |
| The permissible load on the front axle | 5000kg | Ratio | / |
| Suspension form | Air suspension | Number of springs | 2/2/-2 airbags |
| saddle | / | Vehicle braking type | Air brakes |
| handbrake | Brake off | Front wheel brakes | Drum pose |
| Rear wheel brakes | Drum pose | Hydraulic retarder | Optional |
| Vehicle announcement | BJ1269Y6HPL-03 BJ5269XLCY6HPL-03 BJ5269XXYY6HPL-03 BJ5269CCYY6HPL-03 BJ5269XYKY6HPL-03 | Vehicle type | Trucks, refrigerated trucks, box van trucks, stake trucks, wing opening van trucks |
| Vehicle origin | Huairou, Beijing | Tops branding | / |
| Tank / box dimensions | Subject to actual installation | Tank/box volume | / |
| Other optional devices | / |
