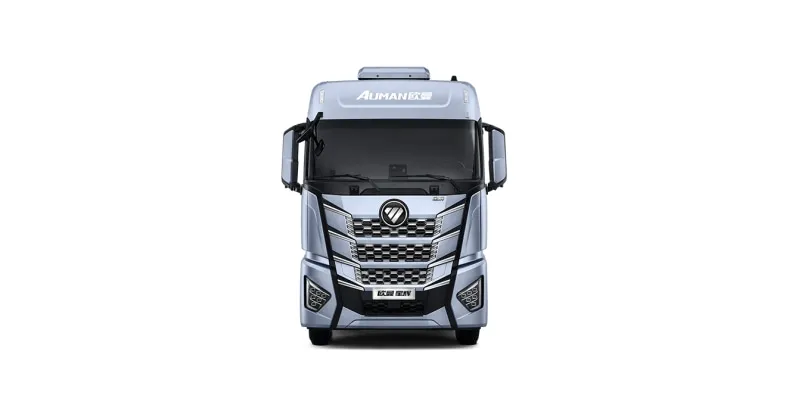

Auman Xinghui 13L580 horsepower 8×4 diesel truck (BJ1319Y6GRL-01) chassis
Usage Scenarios:Green Pass/Cold Chain/Express
Maximum horsepower:580
Drive type:8X4
Wheelbase:2100+4400+1350
Motor:A13-580
Gearbox:12TX2620TD Aluminum (Optional)
Usage Scenarios:Green Pass/Cold Chain/Express
Maximum horsepower:580
Drive type:8X4
Wheelbase:2100+4400+1350
Motor:A13-580
Gearbox:12TX2620TD Aluminum (Optional)
Specification
| Vehicle type information | Auman Xinghui 13L580 horsepower 8×4 diesel truck (BJ1319Y6GRL-01) chassis | Manufacturer's guide price (yuan) | 421550.00 yuan |
| Body (cab table) | Long body, high roof, high floor | Drive type | 8×4 |
| Wheelbase (mm) | 2100+4400+1350 | Body length | 2300 |
| Body width | 2490 | Vehicle height | 3735/3925 (with AC) |
| version | / | GCW (Mass Loaded) | 31S |
| Department (tonnage series) | Standard load | Applications (Segments) | Green Pass/Cold Chain/Express |
| Engine model | A13-580 | Engine brand | Fortcan |
| Number of cylinders | 6 | Cylinder arrangement | In-line |
| Maximum output power | 426KW | Maximum torque | 2600N·m |
| Maximum torque speed | 1000-1400r/min | Rated speed | 1800r/min |
| Fuel Type (Fuel Type) | diesel fuel | Engine displacement (ml) / speed | 12.9L |
| Engine Emissions (Emission Standards) | National VI | Maximum horsepower (Ps)/horsepower range | 580 |
| Transmission model | 12TX2620TD Aluminum (Optional) | Transmission brand | ZF |
| Gear shifting method | AMT is self-contained | Number of gears | 12 |
| Housing Material | aluminium | Tire Specifications (Type) | 12R22.5-16PR、12R22.5-18PR、295/80R 22.5-18PR |
| Number of tires | 13 (including spare tire) | Fuel tank capacity | 850L / optional 1000L integrated double label |
| Fuel tank/gas tank material | Alcoa alloy plate | Gas tank capacity | / |
| Fuel tank heating | / | Rear axle description (rear axle type) | Unipolar reduction bridge, automatic adjusting arm, with inter-wheel differential lock. |
| Rear axle modelF | New 440 Bridge | Rear axle allowable load | 11000kg |
| Rear axle ratio | 2.533;2.643;2.389 | Steering machine | AM90H-VSE is optional for AM80H-S |
| Frame size | 286×80×7 | Front axle description | AM5, auto-adjuster, 2080mm track |
| The permissible load on the front axle | 5000kg | Ratio | / |
| Suspension form | Leaf spring suspension | Number of springs | 2/2/3 |
| saddle | / | Vehicle braking type | Air brakes |
| handbrake | Brake off | Front wheel brakes | Drum pose |
| Rear wheel brakes | Drum pose | Hydraulic retarder | Optional |
| Vehicle announcement | BJ1319Y6GRL-01 BJ5319XXYY6GRL-01 BJ5319CCQY6GRL-02 BJ5319CCYY6GRL-01 BJ5319XLCY6GRL-01 BJ5319XYKY6GRL-01 BJ5319ZSLY6GRL-01 BJ5319XCQY6GRL-01 | Vehicle type | Trucks and chassis Box van trucks Livestock and poultry trucks Stake trucks Refrigerated trucks Wing opening vans Bulk feed trucks Chick transport trucks |
| Vehicle origin | Huairou, Beijing | Tops branding | / |
| Tank / box dimensions | 9530×2450×600,800 9580×2450,2500×2500,2600 9560×2420,2450×- 9560×2450× 600,800 9350,9450×2430,2450× 2500,2600,2430，2550 9580×2450,2500× 2500,2600 9080×2540×2250 —— | Tank/box volume | The volume of the bulk feed transport truck is 32.1 cubic meters |
| Other optional devices | / |
