Usage Scenarios:Green pass/cold chain/express/distribution
Maximum horsepower:520
Drive type:8X4
Wheelbase:2100+4400+1350
Motor:A12-520
Gearbox:12TX2420TD Aluminum (Optional)
Specification

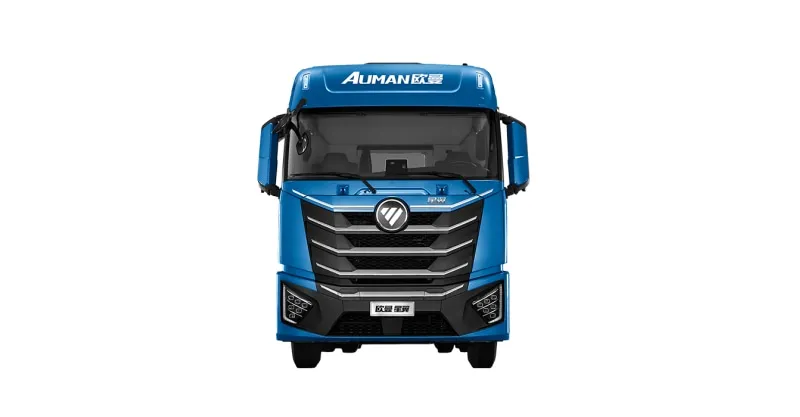

| Vehicle type information | Auman Star Wing Pro12L520 horsepower 8×4 diesel truck (BJ1329Y6GRL-03) chassis | Manufacturer's guide price (yuan) | 389550.00 yuan |
| Body (cab table) | Long body with high roof standard floor | Drive type | 8×4 |
| Wheelbase (mm) | 2100+4400+1350 | Body length | 2300 |
| Body width | 2490 | Vehicle height | 3465 (Standard Floor High Roof) / 3820 (Standard Floor High Top with shroud) / 3655 (Standard Floor High Roof with Parking Air Conditioning) |
| version | / | GCW (Mass Loaded) | 32S |
| Department (tonnage series) | Standard load | Applications (Segments) | Green pass/cold chain/express/distribution |
| Engine model | A12-520 | Engine brand | Fortcan |
| Number of cylinders | 6 | Cylinder arrangement | In-line |
| Maximum output power | 383KW | Maximum torque | 2300N·m |
| Maximum torque speed | 950-1350r/min | Rated speed | 1900r/min |
| Fuel Type (Fuel Type) | diesel fuel | Engine displacement (ml) / speed | 11.8L |
| Engine Emissions (Emission Standards) | National VI | Maximum horsepower (Ps)/horsepower range | 520 |
| Transmission model | 12TX2420TD Aluminum (Optional) | Transmission brand | ZF |
| Gear shifting method | AMT is self-contained | Number of gears | 12 |
| Housing Material | aluminium | Tire Specifications (Type) | 12R22.5-16PR、12R22.5-18PR、295/80R 22.5-18PR |
| Number of tires | 13 (including spare tire) | Fuel tank capacity | 850L / optional 1000L integrated double label |
| Fuel tank/gas tank material | Alcoa alloy plate | Gas tank capacity | / |
| Fuel tank heating | / | Rear axle description (rear axle type) | Unipolar reduction bridge, automatic adjustment arm, with inter-wheel differential lock. |
| Rear axle model F | New 440 Bridge | Rear axle allowable load | 11000kg |
| Rear axle ratio | 2.533;2.643;2.389 | Steering gear | AM80H-S OR AM90H-VSE |
| Frame size | 286×80×7 | Front bridge description | AM５，nonsupport，2080mm |
| The permissible load on the front axle | 5000kg | Ratio | / |
| Suspension form | Air suspension | Number of springs | 2/2/-4 airbags |
| saddle | / | Vehicle braking type | Air brakes |
| handbrake | Brake off | Front wheel brakes | Drum pose |
| Rear wheel brakes | Drum pose | Hydraulic retarder | Optional |
| Vehicle announcement | BJ5329CCYY6GRL-02 BJ5329XLCY6GRL-02 | Vehicle type | Stake trucks refrigerated trucks |
| Vehicle origin | Huairou, Beijing | Tops branding | / |
| Tank / box dimensions | 9560×2450×600,800 9350,9450×2430,2450×2430,2500,2600,2550 | Tank/box volume | / |
| Other optional devices | / |
