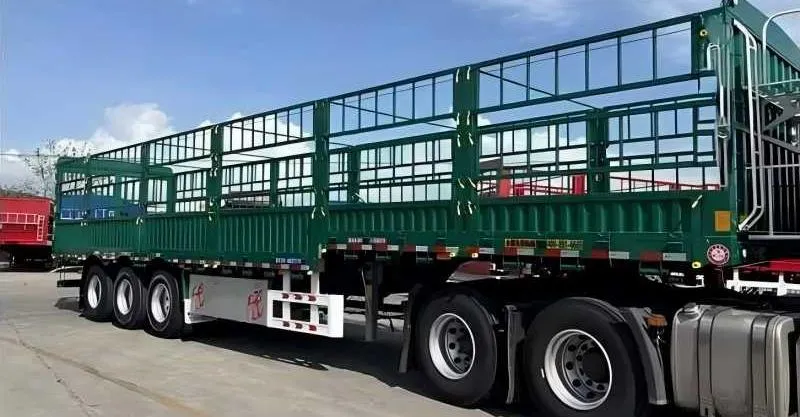

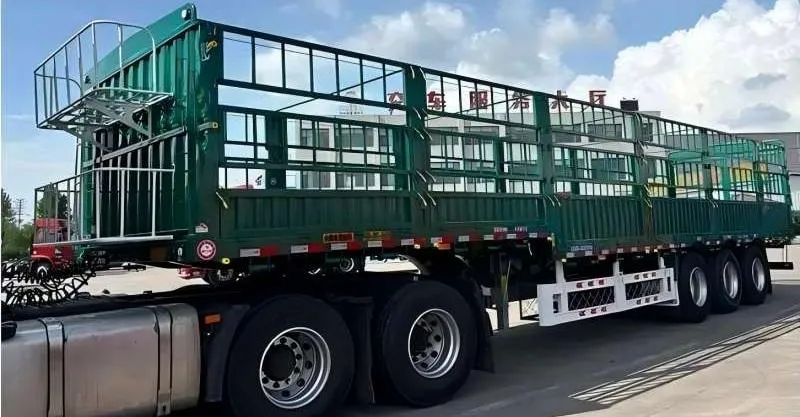

New 12.5M Fence Semi Trailer
New 12.5M Fence Semi Trailer
New 12.5M Fence Semi Trailer
New 12.5M Fence Semi Trailer

New 12.5M Fence Semi Trailer

The new 12.5m fence semi trailer is highly multifunctional and suitable for transportation of various types of goods. Whether it is bulk goods or packaged goods, such as building materials and agricultural products, 12.5m fence semi trailer can be easily loaded and transported.The open design of the vehicle and the solid fence structure ensure the safety and stability of the goods during transportation.

The length of 12.5 meters provides sufficient loading space and can load a large amount of goods. 12.5m fence semi trailers are made of high-intensity materials, such as special steel or aluminum alloys to ensure the solidity and durability of the structure. The multi-axis design of 12.5m fence semi trailer helps to disperse weight, ensure that the ground load is evenly distributed evenly during transportation, reducing pressure on the ground, and suitable for various transportation tasks.


Specification

Fence trailer for sale is made of high -strength materials to ensure strong and durable vehicle structure.This solid structure can withstand long-term overload transportation and extend the life of the vehicle. The fence trailer for sale's framework is carefully designed to ensure that it remains stable when to withstand the maximum load. In addition, the strong structure of the fence trailer for sale also helps reduce maintenance costs, because a solid structure means less maintenance and longer service life.

Dimension12500mm*2500mm*3050mm(1500mm sidewall high)
Load Capacity(T)≤60T
Axle3 axles, 13T/16T, FUWA/BPW Brand
Rim9.00-22.5 9.75-22.5(Specially designed and for oversea markets)
Tire12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
SuspensionMechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets)
Spring leaf90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets)
King pinJOST brand 2.0 or 3.5inch(bolted or welded type)
Support legJOST brand D200T or Chinese brand 28Tons(Double speed)
Main beamHeight: 500mm Upper Plate: 14mm Middle Plate: 8mm

Bottom Plate is 16mm; Material: Q345B Steel
Side beam16mm or 18mm steel channel(material: Q235steel)
Brake chamberWABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks
ABSOptional
Twist LocksFour, Eight or Twelve pieces(lifting type or twist screw type)
ValveWABCO valve
Tool box1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
